Product center

CNC turning and turn-mill machines

Filter models by product type, explore key technical specifications, and start a focused product inquiry.

Filter models by product typeFilter models by tag

17 models shown

CNC Turn-Mill Center

GDM-CX-Y55

For one-setup machining of flanges, covers, valve parts and other chucking components.

Swing Over Bed: 550 mm
Max. Spindle Speed: 5,000 (servo spindle, Fischer) rpm
X/Y/Z-axis Travel: 500/270/435 mm

View product

CNC Turn-Mill Center

GDM-CX80-650W

For medium-size shafts, sleeves, couplings and parts with flats, holes or milled features.

Max. Turning Diameter: 380 mm
Max. Turning Length: 550 mm
Max. Swing: 520 mm

View product

CNC Turn-Mill Center

GDM-CX46D

For flanges, covers, housings, valve parts and other short components with turned and milled features.

Swing Over Bed: 500 mm
Max. Turning Diameter: 380 mm
Max. Spindle Speed: 3500 rpm

View product

CNC Lathe with Hydraulic Servo Turret

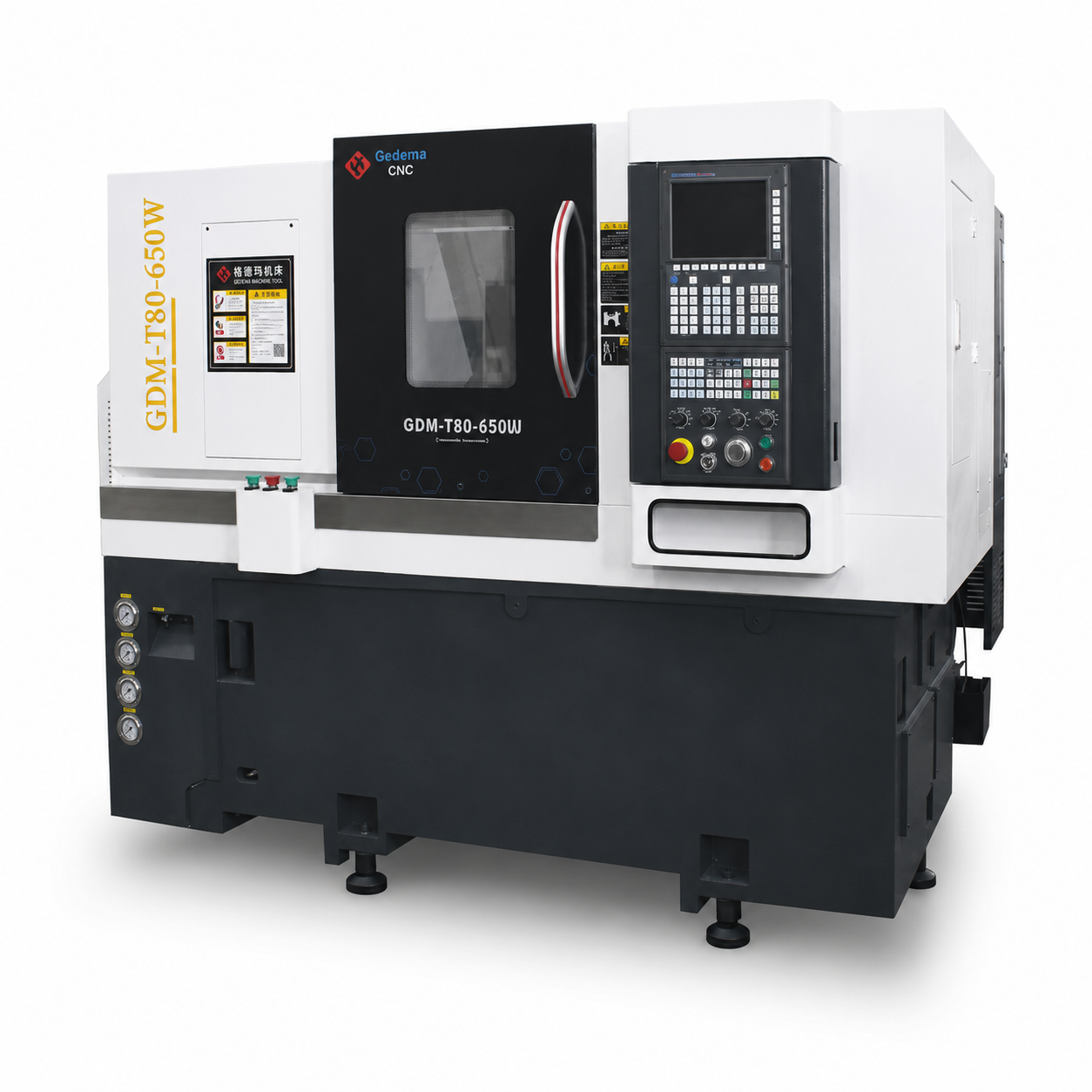

GDM-T80-650W

For medium-size and long shafts, sleeves, rollers, couplings and general precision parts.

Max. Turning Diameter: 400 mm
Max. Swing: 500 mm
Max. Turning Length: 630 mm

View product

CNC Lathe with Hydraulic Servo Turret

GDM-T80-350W

For sleeves, hubs, flanges, couplings and compact shaft parts.

Max. Turning Diameter: 400 mm
Max. Swing: 500 mm
Max. Turning Length: 330 mm

View product

CNC Lathe with Hydraulic Servo Turret

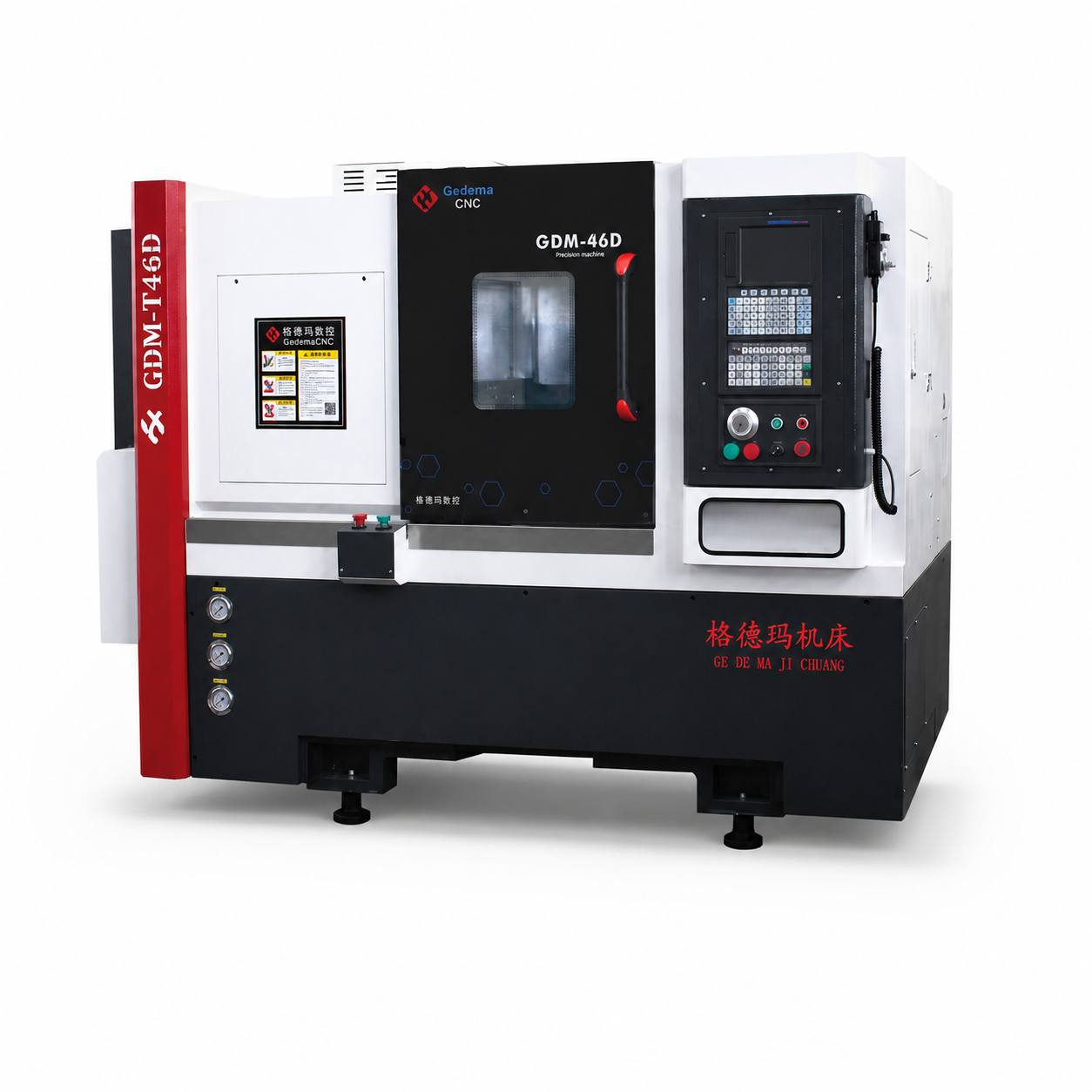

GDM-T46D

For flanges, covers, hubs, pulleys, valve bodies and other short chucking components.

Max. Turning Diameter: 450 mm
Max. Turning Length: 330 mm
Max. Swing: 520 mm

View product

Slant-Bed Gang Tool CNC Lathe

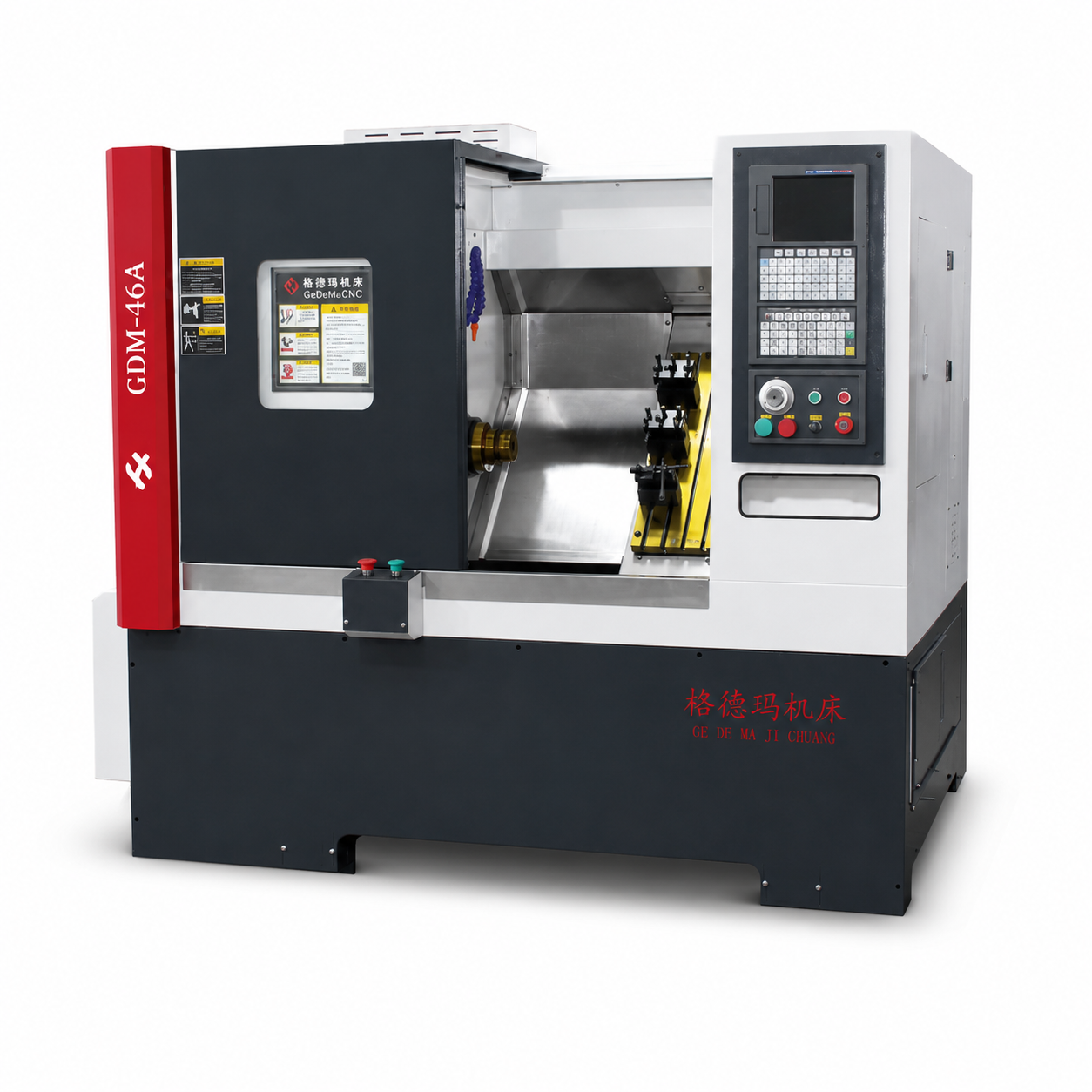

GDM-46A

For bushings, pins, fittings, sleeves and threaded parts in repeat production.

Swing Over Bed: 540 mm
Max. Spindle Speed: 4000 rpm
X-axis Travel: 900 mm

View product

Slant-Bed Turret and Gang-Tool CNC Lathe

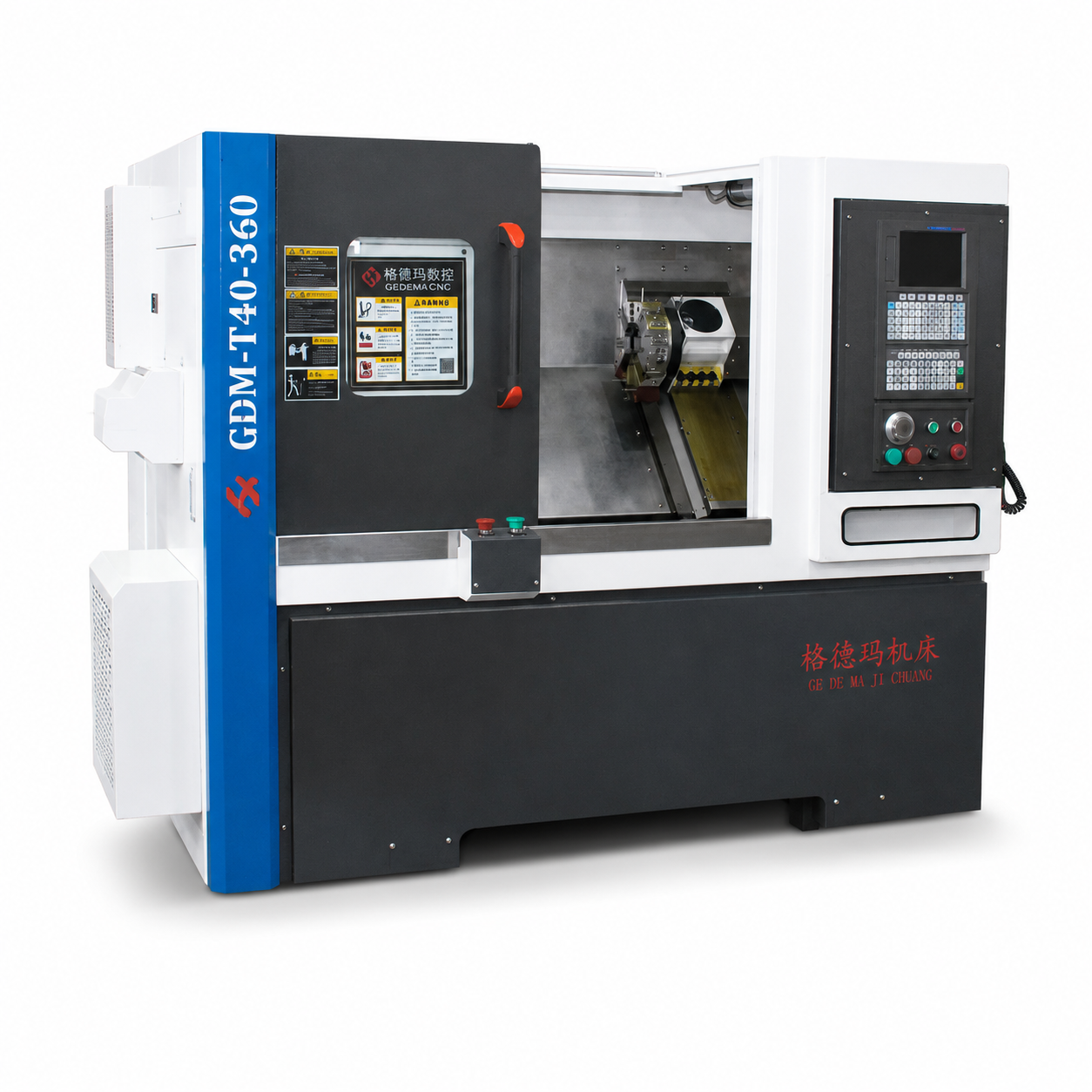

GDM-T40-360D

For fittings, bushings, pins, connectors, sleeves and threaded small parts.

Max. Turning Diameter: 150 mm
Max. Swing: 500 mm
X-axis Travel: 750 mm

View product

Slant-Bed Gang Tool CNC Lathe

GDM-T40-360

For bushings, pins, fittings, connectors, sleeves and threaded bar parts.

Max. Swing: 450 mm
Max. Spindle Speed: 3500 rpm
X-axis Travel: 750 mm

View product

Slant-Bed Gang Tool CNC Lathe

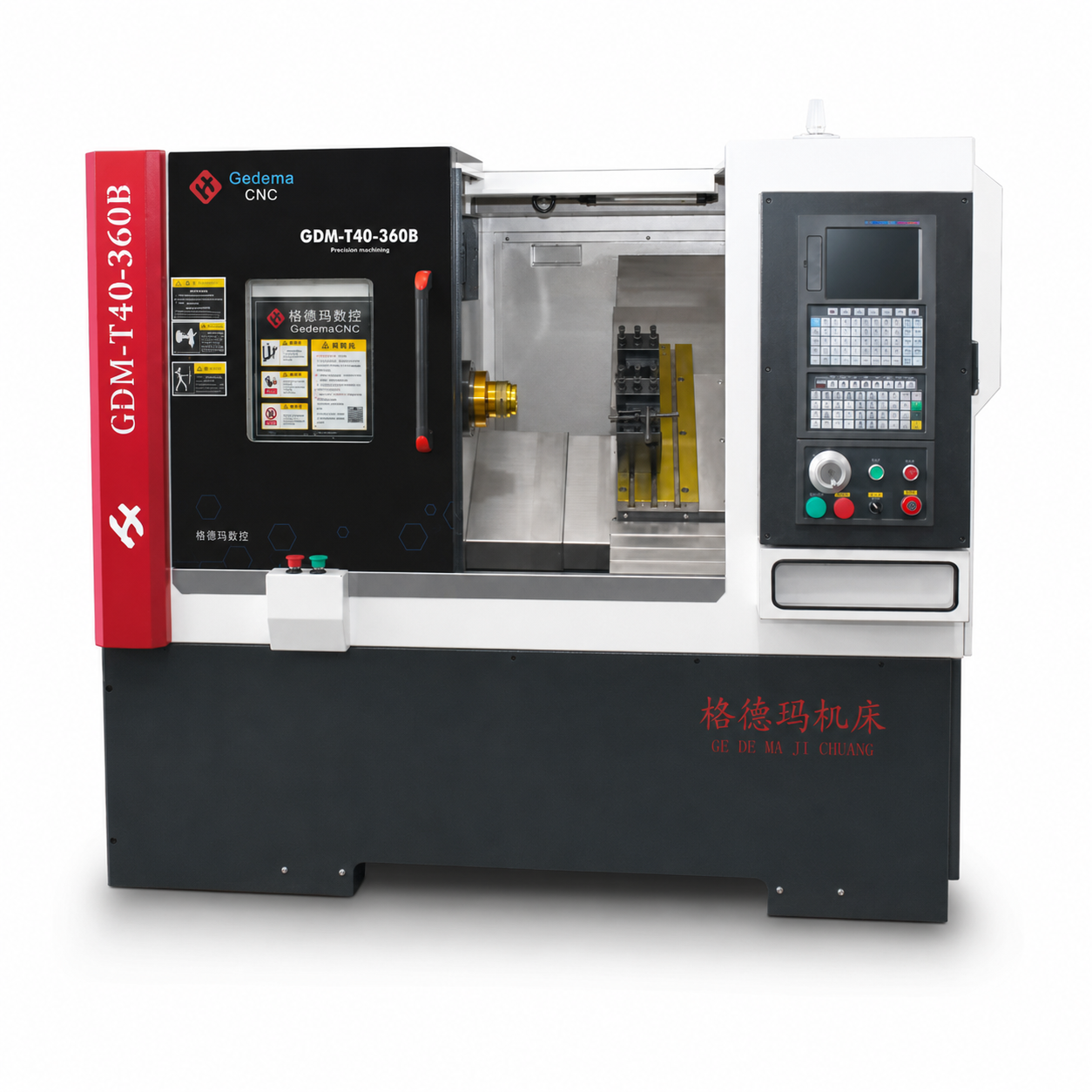

GDM-T40-360B

For bushings, pins, fittings, sleeves, connectors and threaded small parts.

Swing Over Bed: 520 mm
Max. Spindle Speed: 3500 rpm
X-axis Travel: 750 mm

View product

CNC Polygon Milling Machine

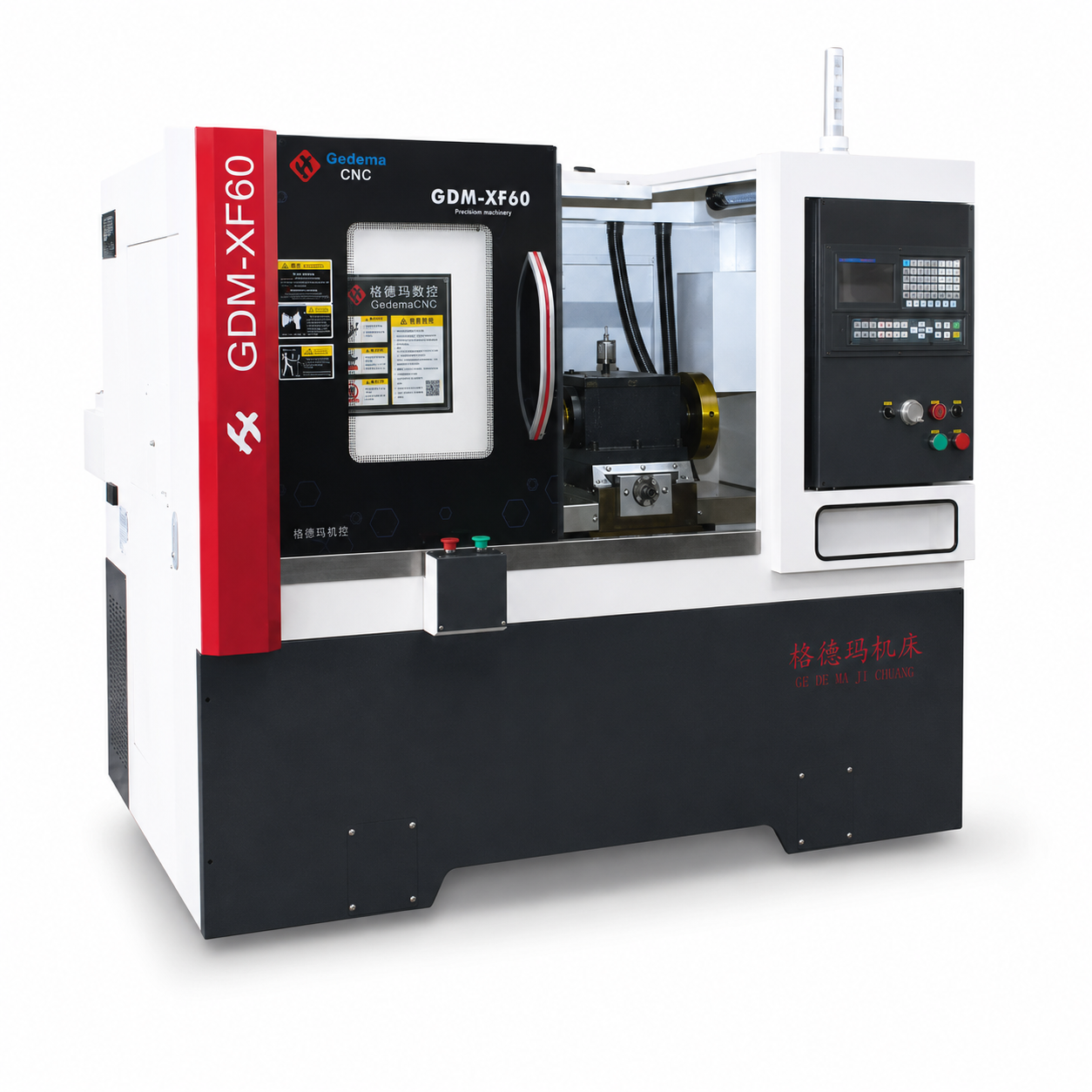

GDM-XF60

For wrench flats, bolt and nut profiles, valve parts, tool shanks and polygonal components.

Max. Turning Diameter: 100 mm
Max. Turning Length: 100 mm
Max. Swing: 450 mm

View product

Flat-Bed CNC Turn-Mill Lathe with Linear Guideways

GDM-HZ40-400

For fittings, valve parts, tool shanks, fasteners and parts with wrench flats.

Max. Turning Diameter: 150 mm
Max. Swing: 600 mm
Max. Spindle Speed: 3000 rpm

View product

Flat-Bed Gang Tool CNC Lathe with Linear Guideways

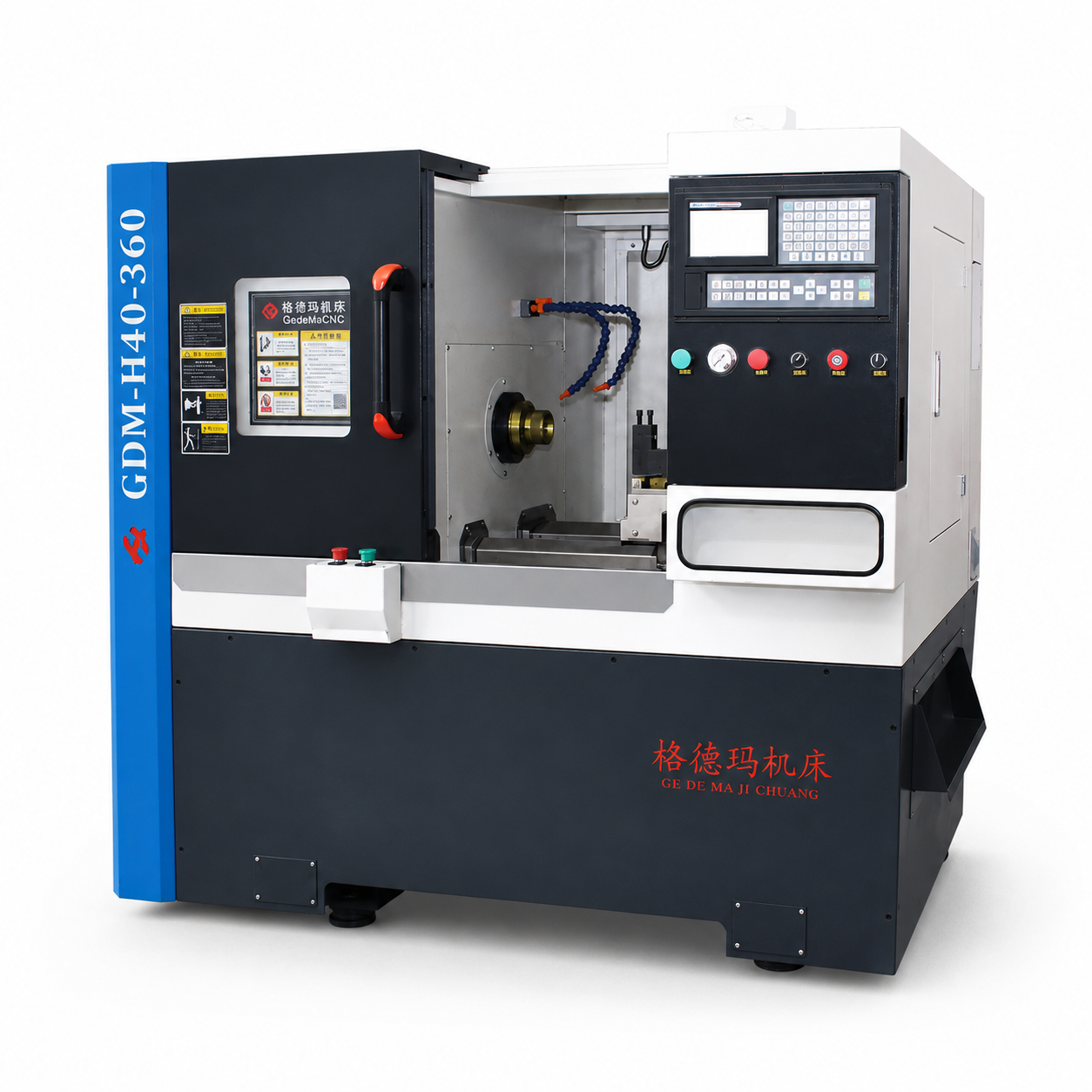

GDM-H40-360

For bushings, fittings, pins, sleeves, threaded parts and other small bar components.

Max. Turning Diameter: 120 mm
Max. Spindle Speed: 3000 rpm
X-axis Travel: 620 mm

View product

Slant-Bed Gang Tool CNC Lathe

GDM-46P

For bushings, short shafts, fittings, connectors, sleeves and threaded metal parts.

Max. Turning Length: 380 mm
Max. Spindle Speed: 4000 rpm
X-axis Travel: 750 mm

View product

Slant-Bed Gang Tool CNC Lathe

GDM-T40-360C

For bushings, pins, fittings, connectors, sleeves and threaded small parts.

X-axis Travel: 700 mm
Z-axis Travel: 400 mm
Spindle Motor Power: 4 kW

View product

Flat-Bed Gang Tool CNC Lathe with Linear Guideways

GDM-H40-360B

For bushings, pins, fittings, sleeves, connectors and threaded bar parts.

Swing Over Bed: 460 mm
Max. Turning Length: 360 mm
Max. Spindle Speed: 4000 rpm

View product

Box-Way CNC Lathe

CKNC-6150B

For shafts, rollers, flanges and other larger workpieces requiring heavy turning.

Swing Over Bed: 500 mm
Spindle Nose: A2-8 (national standard)
Spindle Bore: 82 mm

View product

Compare by part, then check the quotation scope

Use stock size, finished length, gripping and support, secondary drilled or milled features and batch quantity to compare the published models. For a price comparison, also identify the controller, tooling, workholding and delivery scope.

CNC lathe price and quotation checklist Lathe or turn-mill process comparison

Three starting points for a part review

Use these as starting points for a technical discussion; suitability still depends on the drawing, workholding and configuration.

Compact bar-stock parts: GDM-T40-360D Shaft turning: GDM-T80-650W Parts with drilled or milled features: GDM-CX80-650W
